Products Details

MR Elevator (Passenger Elevator)

To save space, expand the building larger space utilization rate, make the operation more flexible and reliable, make the building' more elegant appearance, REGAL small machine room passenger elevator, the compact type permanent magnet synchronous gearless traction machine and the special design ofthe control cabinet, make room area is achieved and the well area is exactly the same.

Multi - Beam Door Sensor

Multiple infrared light beams cover the door height ranged of 20mm to 1840mm from the floor level to detect passengers or objects.

When any of the beams are blocked, the closing doors immediately revers to reopen safely without touching the door as providing standard feature.

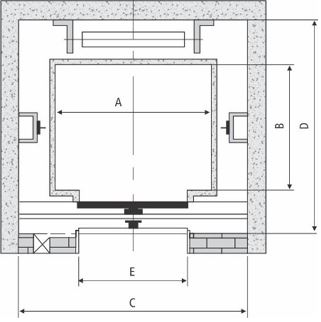

CAPACITY		CAR INSIDE		LIFT WELL		CLEAR ENTRANCE	CLEAR OPENING AT LANDING FOR 2 FOLD
Per.	In Kg	A	B	C	D	E	F
4	272	1100	700	1600	1300	700	780 X 2100
5	340	1170	800	1650	1450	700	780 X 2100
6	408	1170	900	1650	1450	700	780 X 2100
8	544	1300	1100	1800	1700	800	880 X 2100
10	680	1300	1300	1800	1950	800	800 X 2100
13	884	2000	1100	2500	1700	900	980 X 2100
16	1088	2000	1300	2500	1950	900	980 X 2100
20	1360	2000	1500	2500	2250	1000	800 X 2100

• All Dimension are in mm
• This is General Data, it May be Changed without notice
• All hoist way wall should be minimum 230 mm brick or 150mm R.C.C

Features

• Available Rated Speed
  0.63 /1.0 /1.5 /2 MPS
• Max Travel Height
  95M
• Available Rated Capacity
  408 to 1360 kgs.
• Max Pasenger
  06 to 20 Passenger
