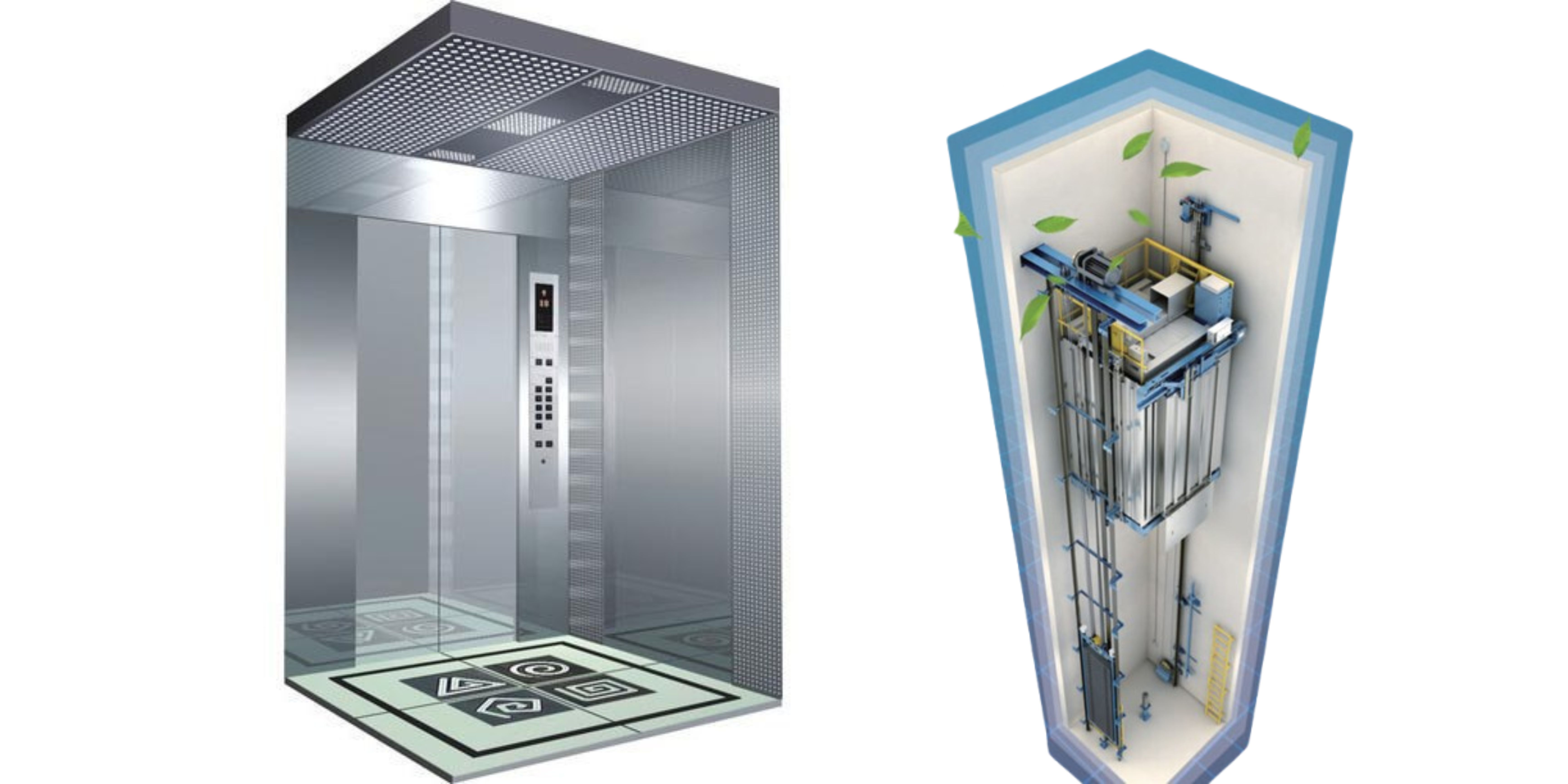

MRL Elevator

MRL (Machine Room Less) Elevators are primary selections for projects with limited space or design that does not require machine room construction. In addition, MRL elevators are ideal for medium-long travel with a consequential degree of reduction of energy.

Advantages

  • Latest Technology in The World
  • Smoothest Travel
  • Absolute Freedom in Building Designs
  • It reduces 40% of space Ground
  • Substantial Saving On Electricity Cost
  • Save The Construction Cost
  • More Safe

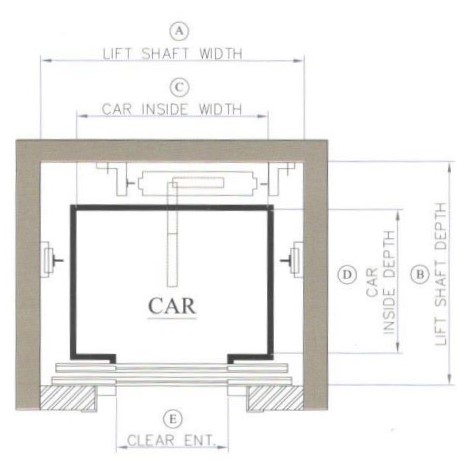

Lift Hoistway plan

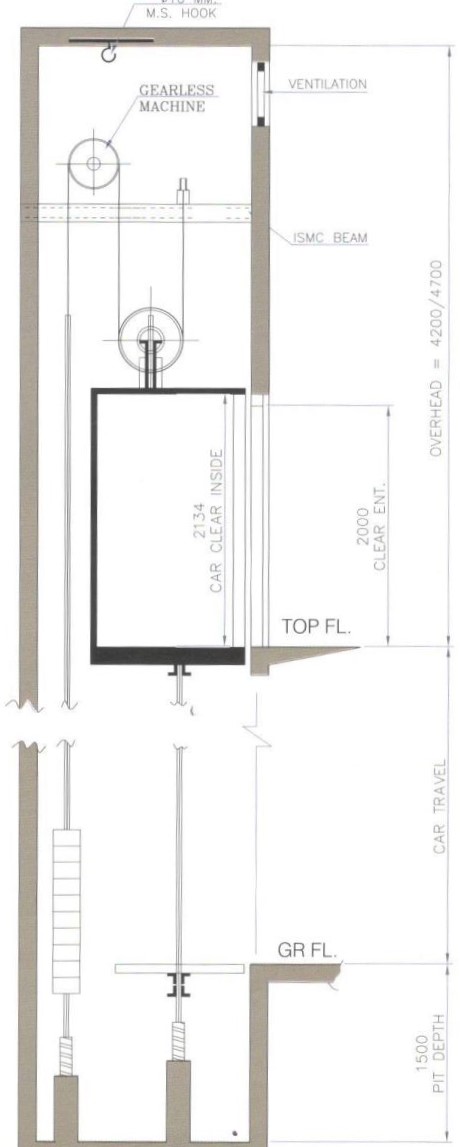

Lift Well Section view

Auto Door - Center Opening ( TYPE-A )

PERSON LOADS KGS. Lift Shaft CAR INSIDE CLEAR ENTRANCE
A B C D E
5 340 1600 1500 1000 900 700
6 408 1800 1500 1200 900 700
8 554 1900 1700 1300 1100 800
10 680 2000 1800 1400 1200 800
12 816 2000 2000 1400 1400 800
15 1020 2100 2200 1500 1600 900

Lift Hoistway plan

Lift Well Section view

Auto Door - Center Opening ( TYPE-B )

PERSON LOADS KGS. Lift Shaft CAR INSIDE CLEAR ENTRANCE
A B C D E
5 340 1800 1500 1000 900 700
6 408 1800 1700 1000 1100 700
8 554 2000 1800 1200 1200 800
10 680 2000 2000 1200 1400 800
12 816 2300 1900 1500 1300 900
15 1020 2300 2200 1500 1600 1000

Optimized Space: 25% Area Savings and 40% Reduced Occupation

  • Available Rated Speed
    1.00 /1.50 /2 MPS
  • Max Travel Height
    95M
  • Available Rated Capacity
    340 to 1768 kgs.
  • Max Pasenger
    05 to 26 Passenger
