Hydraulic elevators offer a flexible and practical solution for various low-rise applications, including bungalows, villas, shopping malls, hotels, and multiplexes where precise installation positioning is essential. Their design is especially advantageous in environments with limited space, as the hydraulic system eliminates the need for a counterweight, optimizing the use of the hoist-way. This approach not only improves space utilization but also reduces both construction space and costs.
Furthermore, hydraulic elevators can handle loads of up to 2 tons, making them suitable for a diverse range of transport needs. Their efficient use of space and cost-effectiveness make them an excellent choice for environments requiring reliable and adaptable vertical transportation solutions.
Hydraulic elevators can handle loads of up to 2 tons, making them well-suited for a variety of transportation needs. Their robust capacity ensures they can manage significant loads while maintaining reliable performance.
Hoistway plan
Lift Well Section view
| PERSON | LOADS KGS. | Lift Shaft | CAR INSIDE | CLEAR ENTRANCE | ||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| 4 | 272 | 1600 | 1500 | 900 | 800 | 700 |
| 5 | 340 | 1600 | 1600 | 1000 | 900 | 700 |
| 6 | 408 | 1800 | 1700 | 1100 | 1000 | 800 |
| 7 | 476 | 1800 | 1800 | 1100 | 1100 | 800 |
| 8 | 554 | 1800 | 1900 | 1200 | 1200 | 800 |
It is a directly acting suspension with a simple or split piston
It
is the simplest of suspension of any load
Hoistway plan

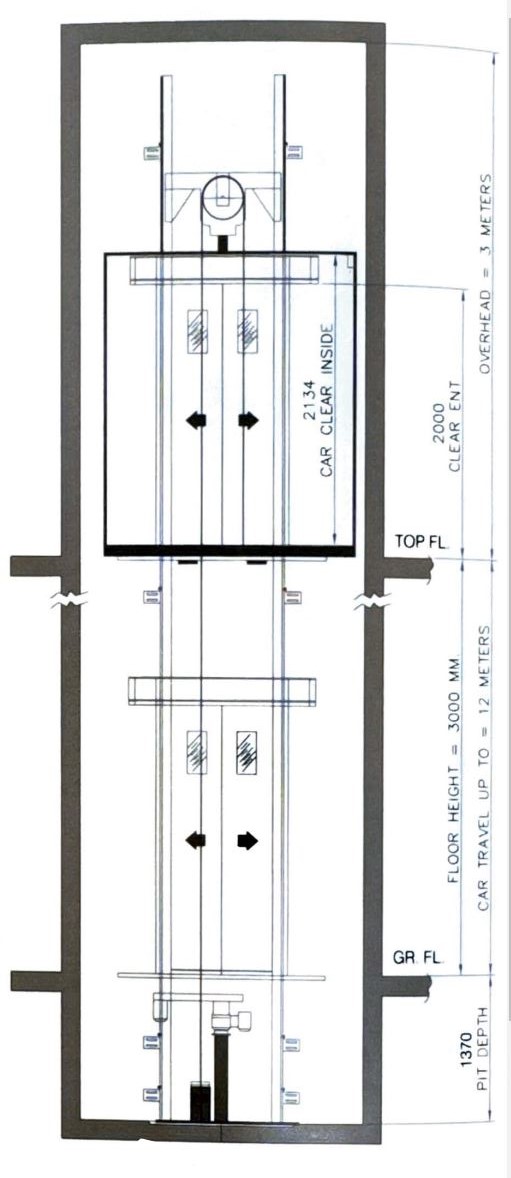

Lift Well Section view
| PERSON | LOADS KGS. | Lift Shaft | CAR INSIDE | CLEAR ENTRANCE | ||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| 4 | 272 | 1400 | 1500 | 900 | 800 | 700 |
| 5 | 340 | 1400 | 1600 | 900 | 900 | 700 |
| 6 | 408 | 1600 | 1700 | 1100 | 1000 | 800 |
| 7 | 476 | 1600 | 1800 | 1100 | 1100 | 800 |
| 8 | 554 | 1700 | 1900 | 1200 | 1200 | 800 |
It is a single side indirectly acting suspension with wire ropes having one piston for regular loads
Their flexibility and efficient use of space make hydraulic elevators a cost-effective choice for low-rise and residential environments. By optimizing space and reducing construction costs, they provide a practical solution for diverse applications.
