Goods Elevator

Our REGAL series freight elevators feature a fully computerized modular control system with a reliable drive mode and sensitive VVVF variable frequency door machine. With a maximum travel height of 46 meters, they ensure smooth and efficient transport under diverse conditions, making them perfect for a variety of freight transport tasks.

Bear any heavy load at ease. easy transport

Our freight elevators are designed with a high-strength car structure and equipped with anti-collision strips and photocell door settings, ensuring both safety and durability. These features are integral in providing reliable performance and protecting the elevator's components from potential damage.

Our elevators can support loads from 500 to 5000 kg, making them versatile for various building structures and transport needs. This adaptability allows us to meet growing transport demands efficiently and set new standards in operational excellence across diverse environments.

goods

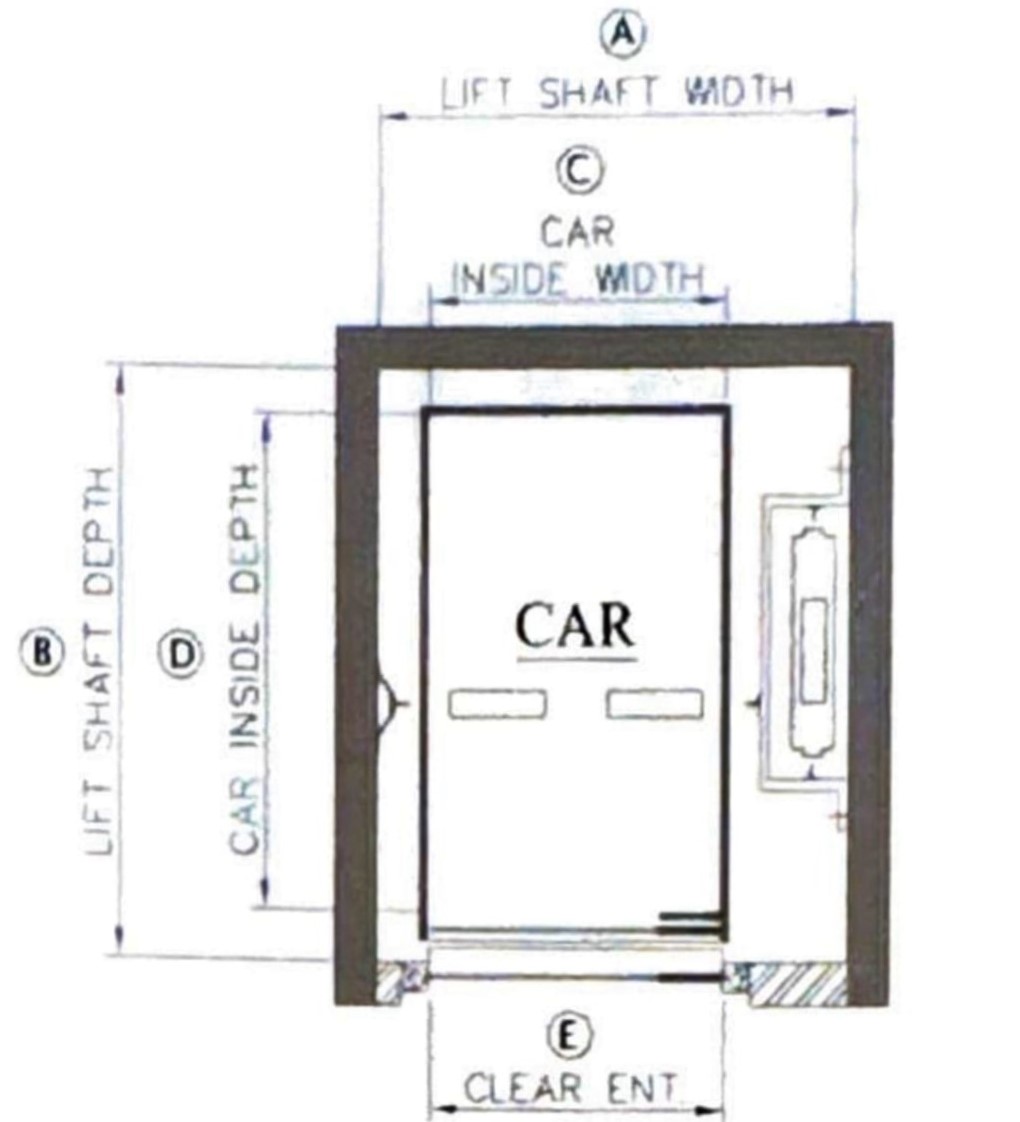

Hoistway Plan

goods

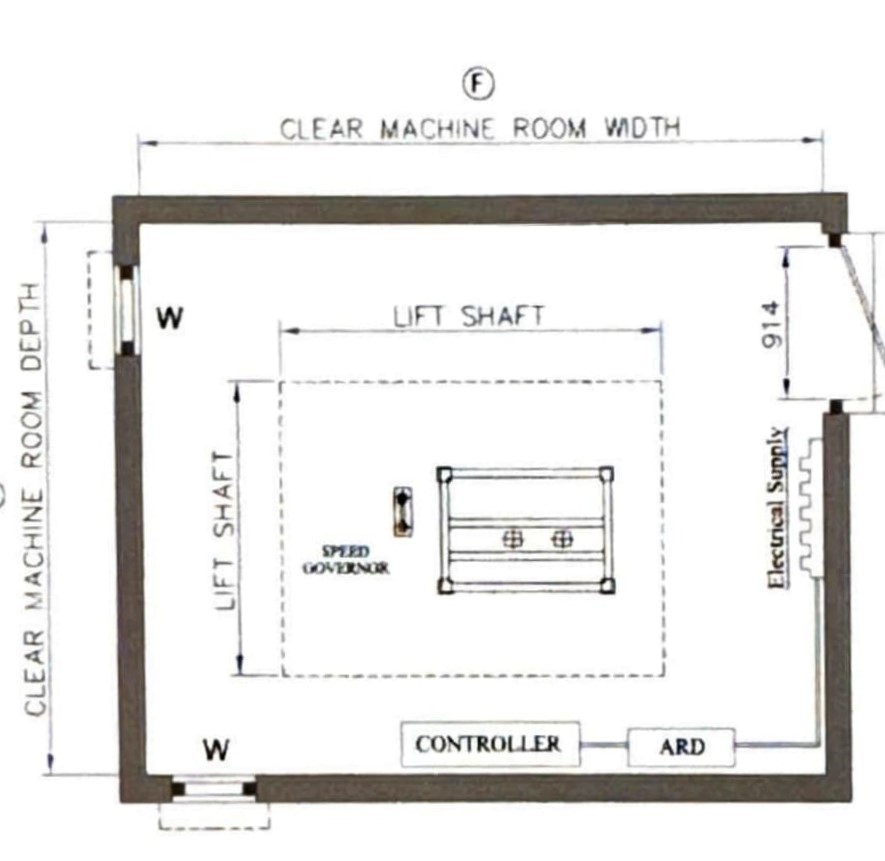

Machine Room Plan

goods

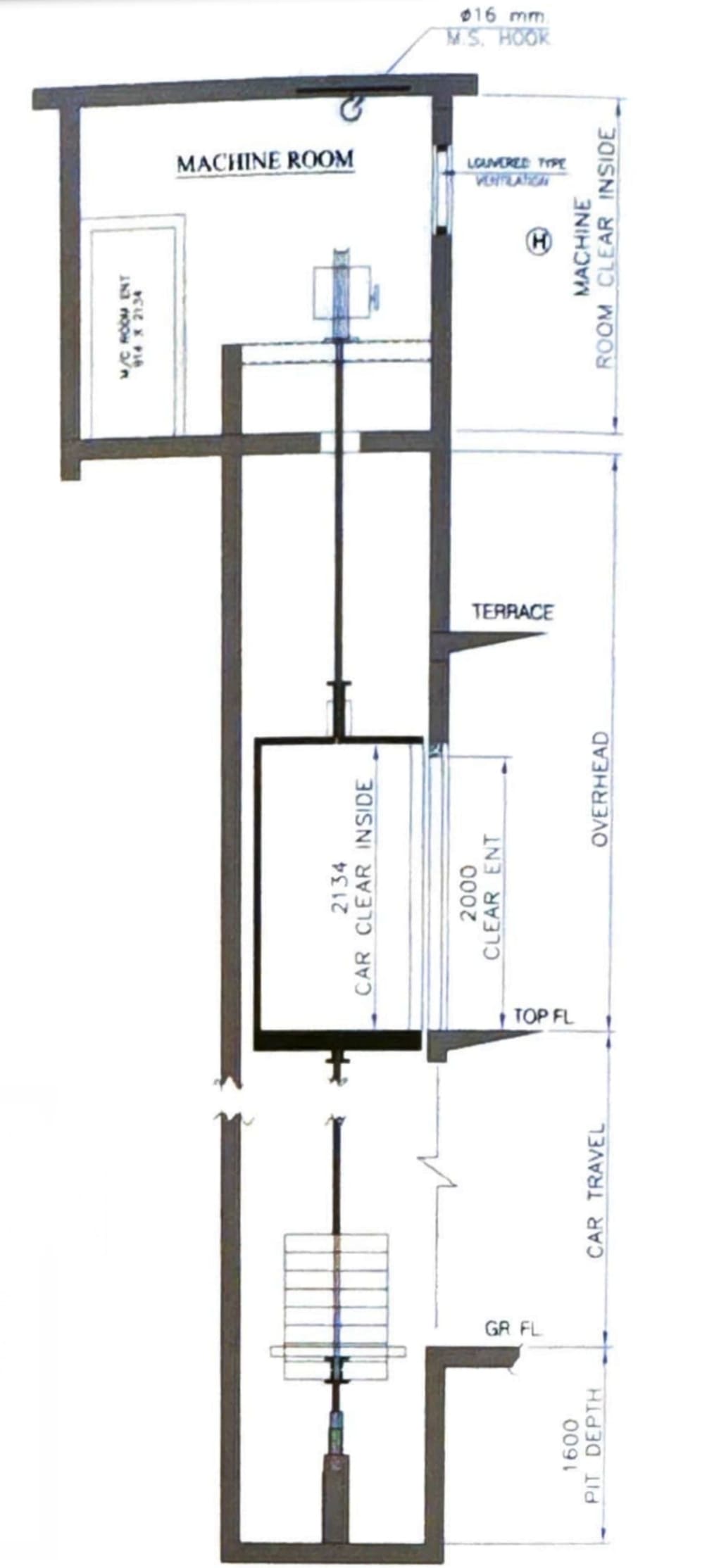

section view

A B C D E F G H
LOAD LIFT SHAFT CAR INSIDE CLEAR ENTRANCE MACHINE ROOM SPEED OVERHEAD PIT
Kgs. Width Depth Width Depth Width Depth Height (M.P.S)
500 1800 1500 1400 1000 1000 3400 3000 2700 0.7 4200/4800 1600
1000 2200 2100 1400 1800 1400 3600 3500 2700 0.33/0.50 4200/4800 1600
1500 2600 2300 1700 2000 1700 3800 3500 2700 0.33/0.50 4800 1600
2000 2600 2800 1700 2500 1700 4000 3500 2700 0.33/0.50 4800 1600
2500 2900 2800 2000 2500 2000 4200 4000 2700 0.33/0.50 4800 1600
3000 2900 3300 2000 3000 2000 4500 4000 2700 0.33/0.50 4800 1600
  • All Dimension are in mm
  • This is General Data, it May be Changed without notice
  • All hoist way wall should be minimum 230 mm brick or 150mm R.C.C

There is a variety of forms to meet different needs

Two panel Sliding

center opning

single way Door

double way Door

Freely use the precious construction space

  • Available Rated Speed
    0.33 / 0.50 / 1.00 MPS
  • Max Travel Height
    66M
  • Available Rated Capacity
    500 to 5000 kgs.
