Our premium capsule elevators offer a fast and highly cost-effective way to create a full-glass elevator solution for your building, with a maximum travel height of 66 meters. There are multiple car models to choose from, as well as a wide range of interior design options and other customization possibilities. Available rated capacities vary.

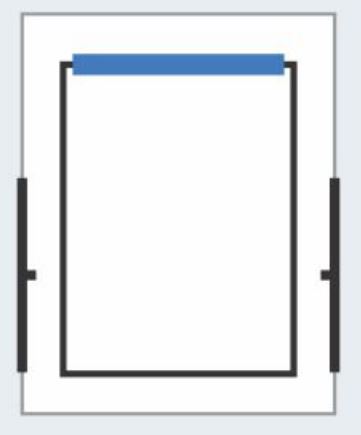

Rear side

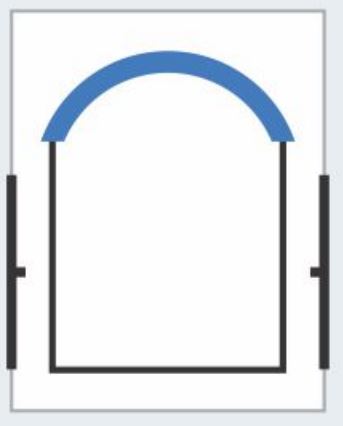

semi circle

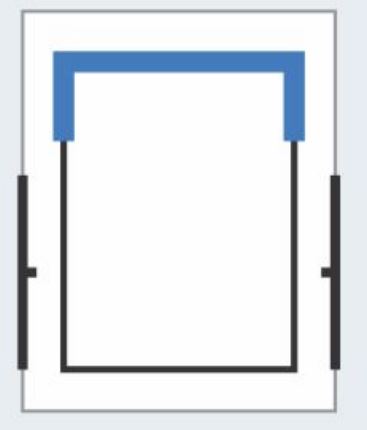

3 side square

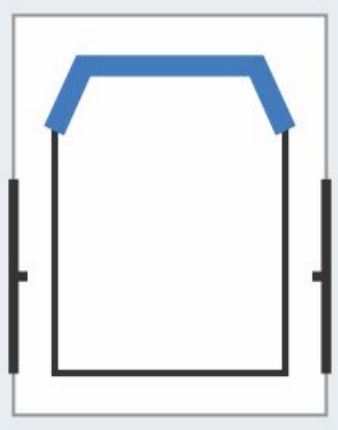

3 side edge

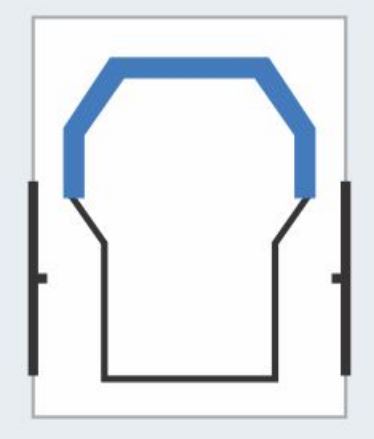

5 side edge
There are multipal car model to choose from, as well as a wide range of interior design options and other customization possibilties
When any of the beams are blocked, the closing doors immediately revers to reopen safely without touching the door as providing standard feature.

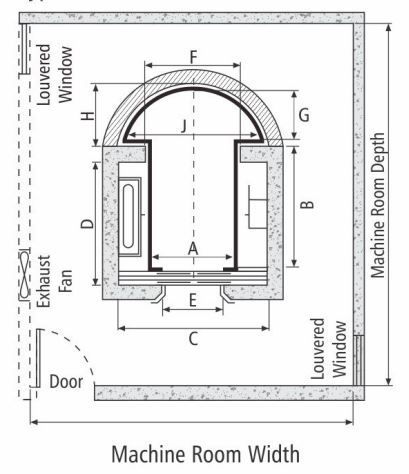

Type A

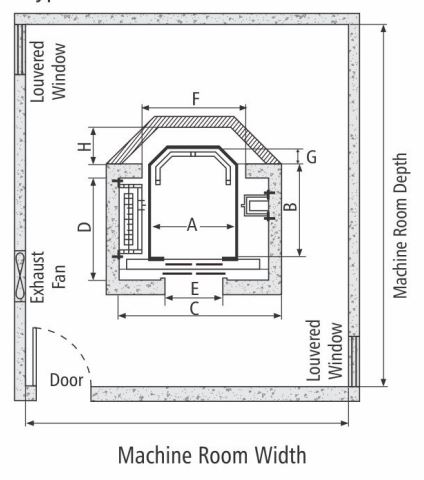

Type B
Load | Car Inside | Lift Well | Entrance | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Person | Kgs | A | B | J | G | C | D | F | H | E |
10 | 680 | 1100 | 1300 | 1400 | 650 | 2200 | 1325 | 1330 | 1100 | 800 |
13 | 884 | 1200 | 1400 | 1550 | 700 | 2400 | 1425 | 1430 | 1100 | 900 |
16 | 1088 | 1300 | 1500 | 1700 | 750 | 2800 | 1530 | 1530 | 1200 | 1000 |
Load | Car Inside | Lift Well | Entrance | ||||||
---|---|---|---|---|---|---|---|---|---|
Person | Kgs | A | B | G | C | D | F | H | E |
10 | 680 | 1250 | 1300 | 250 | 2200 | 1450 | 1480 | 580 | 800 |
13 | 884 | 1400 | 1400 | 300 | 2400 | 1550 | 1630 | 650 | 900 |
16 | 1088 | 1550 | 1500 | 350 | 2800 | 1780 | 1650 | 790 | 1000 |
